BG-flavoured markdown

Mardown BG (.mdbg) is an improvement of the existing Mardown language.

It provides nice features which make it possible to generate a fresh, correct and nice .tex document.

Syntax

Markdown-flavoured

Headers

Like in markdown.

# H1
## H2
### H3
#### H4
##### H5
###### H6

Non numbered sections

For non enumerated sections :

#* H1
##* H2
###* H3
####* H4
#####* H5
######* H6

Emphasis

Translations :

Bold

In markdown :

**bold** or __bold__

In mdbg :

*bold*

Underline

_underline_

Italic

In markdown :

_italic_ or *italic*

In mdbg :

%italic%

Strikethrough

In markdown :

~~strikethrough~~

In mdbg :

~strikethrough~

Lists

Small changes have been made.

This is a list in mdbg :

Neutral text :
    - first item
    - second item
        - first second item
        - second second item
    - third item

and an enumerated list :

    1. first item
    2. second item
        1. first second item
        2. second second item
    3. third item

The indentations can be four spaces or a tabulation but each item has to be idented.

[text for link](https://www.google.com)

[text for link](https://www.google.com "title for link")

Code

Like in Markdown.

Tables

Like Markdown, without the 2nd line.

In mdbg :

| C11 | C21 | C31 |
| C21 | C22 | C32 |
| C31 | C32 | C33 |

Whereas in Markdown :

| C11 | C21 | C31 |
| --- | --- | --- |
| C21 | C22 | C32 |
| C31 | C32 | C33 |

You can’t chose text alignment for every cell but you can chose it for every row by adding the command !!tab followed by the alignments.

For example one possible table would be :

!!tab r c l
| C11 | C21 | C31 |
| C21 | C22 | C32 |
| C31 | C32 | C33 |

New !

Trees

Basic binary tree

Description :

![TREE R "root" N "a node" L "a leaf" L "an other leaf" N "an other node" L "a leaf again !" N "a node again !" L  "OneWord" L "the last leaf"]!

If you want to draw an non strictly binary tree, you can write L () for an empty leaf

Non binary trees

Command : ![nTREE]!

![nTREE "A" -- {"B" -- {"H" -- {"N", "O"}, "I", "J"}, "C", "D", "E" -- {"K" -- "P", "L" -- "Q"}, "F", "G" -- "M"}]!

Graphs

You can draw graphs with a very simple syntax (the same as nTREE syntax).

This is made possible thanks to TikZ fantastic graphs and graphdrawing packages, with some of their libraries.

Command : ![GRAPH .............!]

With a possible !!option before ![GRAPH... line.

This option will be translated to \graph[<option>]... in LaTeX.

See pgfmanual for more information about the syntax.

You can also base your graph on the example given in the section Examples

New text features

Superscript

You can use text in superscript :

We live in Paris, in the 5^{th}

Subscript

You can use text in subscript :

This is a normal text_{this one is subscripted}

Footnotes

This is how to use footnotes :

I never work ***{almost}

Colored texts

How to use colored texts :

I love {red}[red] and {green}[blue witten in green] !

A list of all possible colors is given at the end of this readme.

Center environnement

You can center some text or some figure with this :

(((
...
)))

Miscellaneous

Add a ! at the begining of a line to have a \noindent before this line in the LaTeX generated file.

Add a / at the end of a line to have a line break.

Examples

Trees

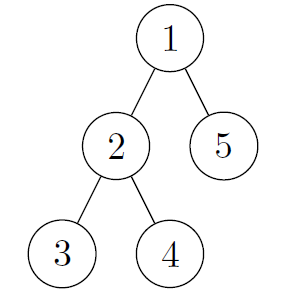

The command ![TREE R 1 N 2 F 3 F 4 F 5]! produces the following result in LaTeX :

Binary tree

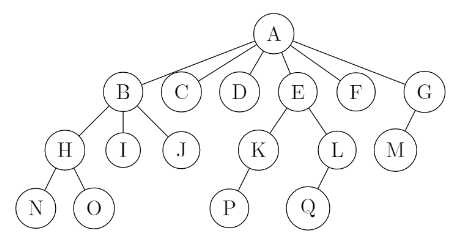

the command ![nTREE A -- {B -- {H -- {N, O}, I, J}, C, D, E -- {K -- P, L -- Q}, F, G -- M}]! produces the following result in LaTeX :

Multiple tree

Code

Those lines :

```ocaml
let fg i = 2 * i + 1;;
let fd i = 2 * i + 2;;

let rec heapify a n i = match fg i, fd i with
	| g, d when g > n -> ()
	| g, d when d > n -> if a.(i) < a.(g) then swap a i g
	| g, d -> if a.(i) < a.(g) || a.(i) < a.(d) then begin let k = if a.(g) > a.(d) then g else d in swap a i k; heapify a n k end;;

let heap_sort a = let n = ref (vect_length a - 1) in
	for k = !n downto 0 do
		heapify a !n k
	done;
	while !n <> 0 do
		swap a 0 !n;
		decr n;
		heapify a !n 0
	done;;
```

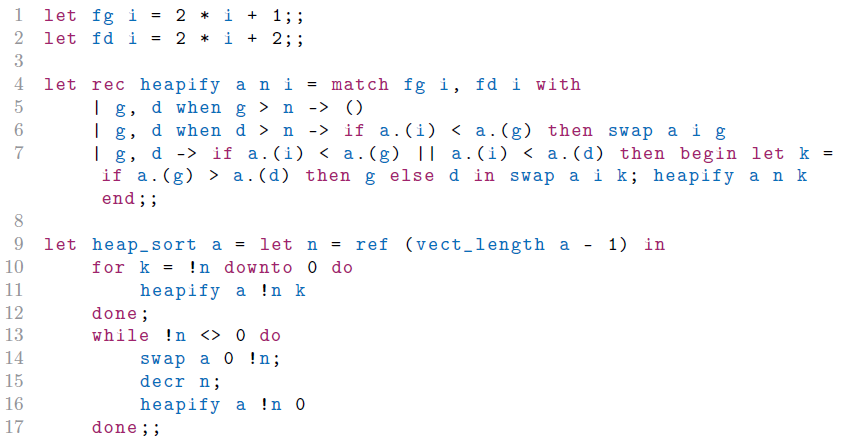

Will produce this :

Some code in ocaml

Graphs

!!layered layout
![GRAPH "5th Edition" -> { "6th Edition", "PWB 1.0" };
"6th Edition" -> { "LSX", "1 BSD", "Mini Unix", "Wollongong", "Interdata" };
"Interdata" -> { "Unix/TS 3.0", "PWB 2.0", "7th Edition" };
"7th Edition" -> { "8th Edition", "32V", "V7M", "Ultrix-11", "Xenix", "UniPlus+" };
"V7M" -> "Ultrix-11";
"8th Edition" -> "9th Edition";
"1 BSD" -> "2 BSD" -> "2.8 BSD" -> { "Ultrix-11", "2.9 BSD" };
"32V" -> "3 BSD" -> "4 BSD" -> "4.1 BSD" -> { "4.2 BSD", "2.8 BSD", "8th Edition" };
"4.2 BSD" -> { "4.3 BSD", "Ultrix-32" };
"PWB 1.0" -> { "PWB 1.2" -> "PWB 2.0", "USG 1.0" -> { "CB Unix 1", "USG 2.0" }};
"CB Unix 1" -> "CB Unix 2" -> "CB Unix 3" -> { "Unix/TS++", "PDP-11 Sys V" };
{ "USG 2.0" -> "USG 3.0", "PWB 2.0", "Unix/TS 1.0" } -> "Unix/TS 3.0";
{ "Unix/TS++", "CB Unix 3", "Unix/TS 3.0" } -> "TS 4.0" -> "System V.0" -> "System V.2" -> "System V.3";
]!

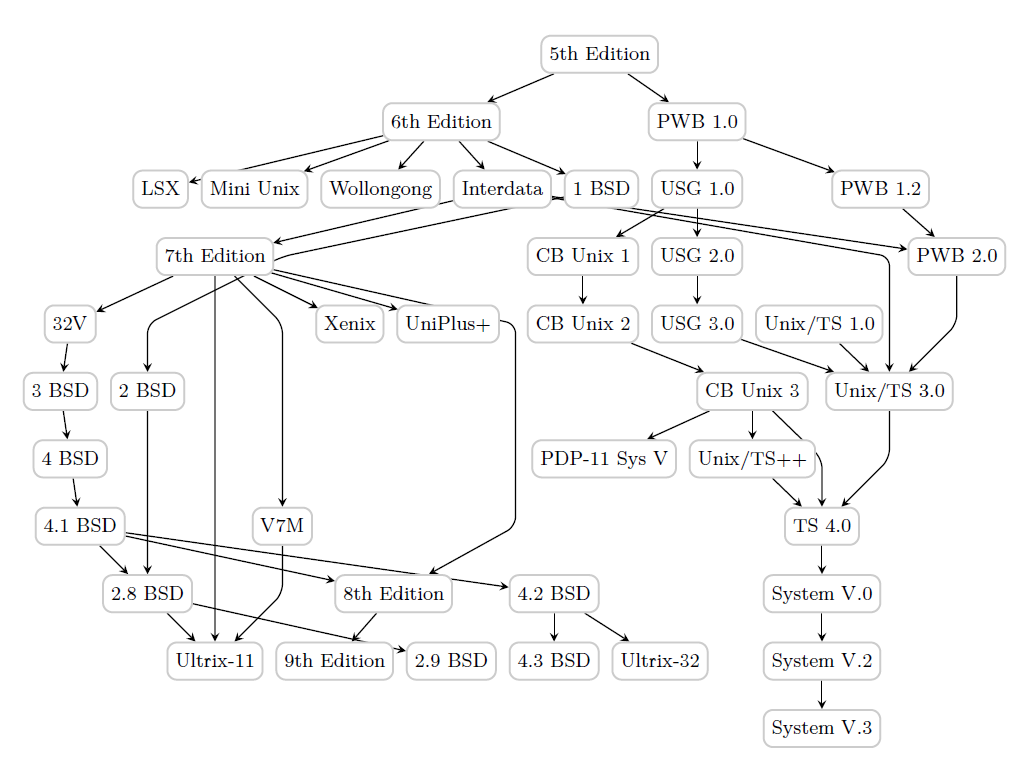

Will produce this :

Graph example

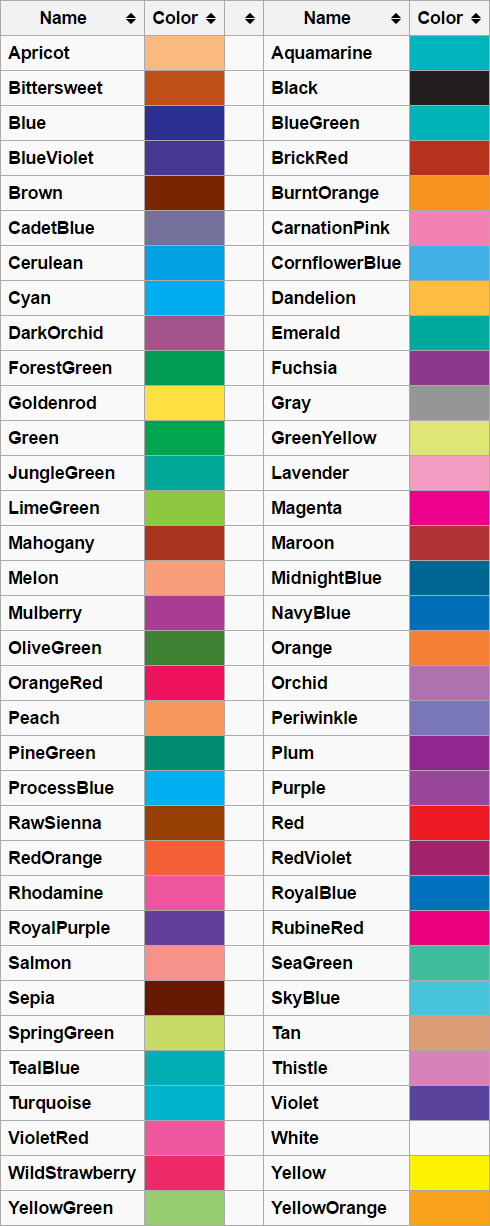

Comprehensive list of colors

Colors

pgfmanual

Here is a link of a recent and accurate version of pgf-tikz manual.

It is used for trees and graphs in Markdown BG.
